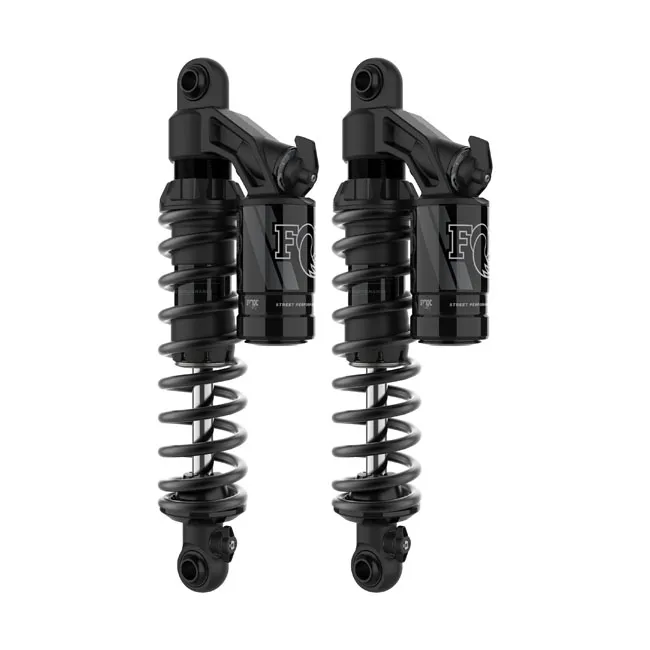

Fox Factory Standard QS3 Piggyback 12.5 Inch Shocks In Black For Harley Davidson 1991-2017 Dyna Models (897-27-304)

  • Fox Factory Standard QS3 Piggyback 12.5 Inch Shocks In Black For Harley Davidson 1991-2017 Dyna Models (897-27-304)
£1,336.33 inc.VAT
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

EU stock Estimated shipping date between 2 Apr and 5 Apr.

Usually ships in 2-5 business days

All orders are shipped out of our UK premises. Estimated shipping date between 2 Apr and 5 Apr.

×

Instructions
About Shipping Costs

Shipping Cost

To view the total cost including shipping please advance to the basket and select your shipping country.

×

The new FOX QS3-QSR rear shocks have been redesigned to include both three-position compression and rebound Quick Switches.

The Quick Switch compression (QS3) three-position adjustments on the piggyback reservoirs allow you to select between three specific settings: maximum comfort, extra support during hard acceleration, or most responsive and precise handling.

The main piston valving has been reconfigured and extensively ride tested in a full range of conditions to work in harmony with the new three-position Quick Switch Rebound (QSR) settings.

Three distinct settings make it easy to dial in the correct rebound for different riding situations: comfort on bumpy backroads, “any road” balance of control and comfort, and a “glued to the asphalt” feeling on smooth twisty roads.

In addition, external piggyback reservoirs house internal floating pistons to separate the nitrogen gas from the shock oil, meaning the QS3-QSR shocks will maintain damping control no matter how long you ride.

FOX’s new QS3-QSR compression and rebound adjustable design—combined with vehicle specific damping and linear spring rates—gives you the ability to quickly adapt to any riding situation.

Combine the FOX STREET PERFORMANCE QS3-QSR REAR SHOCK SET with the new FOX GRIP STREET PERFORMANCE FORK CARTRIDGE KIT FOR HARLEY DYNA to get the best possible ride quality with the ultimate in adjustability for comfort and control.

Features:

  • Model-specific optimized ride tune
  • QS3: 3-position quick switch compression adjustment
  • QSR: 3-position quick switch rebound adjustment
  • Spring preload setting guide marks
  • Aluminum piggyback reservoirs
  • Gas-charged mono-tube with internal floating piston (IFP) design
  • 1.5-inch diameter 6061-T6 aluminum type III hard-anodized bodies
  • Fully rebuildable and re-valvable
  • Advanced high-flow, deflective disc velocity-sensitive damping
  • 5/8-inch diameter, low friction, super-finished hard chrome shafts
  • Matte black springs and black-anodized preload rings

Adjustments:, QS3 3-position quick switch compression adjustment, QSR: 3-position quick switch rebound adjustment Spring preload

Extended: 12.560

Compressed: 9.650

Travel: 2.910

Top Mount: Eyelet

Bottom Mount: Eyelet

Reservoir: Piggyback

Ride Height: Standard

Spring Weight: Standard: Recommended for up to 240lbs total ride load

Part numbers +

  • ARM880995
  • 599088
  • 897-27-304

Fitment +

    HARLEY DAVIDSON
  • Dyna Switchback - FLD: 2012-2016
  • Dyna Super Glide - FXD: 1995-2005, 2007-2010
  • Dyna Street Bob - FXDB: 2007-2017
  • Dyna Street Bob Limited - FXDBA: 2013
  • Dyna Street Bob Limited - FXDBB: 2014-2015
  • Dyna Street Bob Limited - FXDBC: 2016
  • Dyna Street Bob (EFI) - FXDBI: 2006
  • Dyna Street Bob Police - FXDBP: 2013-2016
  • Dyna Super Glide Custom - FXDC: 1992, 2005, 2007-2014
  • Dyna Super Glide Custom (EFI) - FXDCI: 2005-2006
  • Dyna Fat Bob - FXDF: 2008-2017
  • Dyna Fat Bob CVO/SE - FXDFSE: 2009
  • Dyna Fat Bob CVO/SE - FXDFSE2: 2010
  • Dyna Super Glide (EFI) - FXDI: 2004-2006
  • Dyna Super Glide 35th Anniversary - FXDI35: 2006
  • Dyna Low Rider - FXDL: 1993-2005, 2007-2009, 2014-2017
  • Dyna Low Rider (EFI) - FXDLI: 2004-2006
  • Dyna Low Rider S - FXDLS: 2016-2017
  • Dyna Convertible - FXDS-CON: 1994-2000
  • Dyna Super Glide CVO/SE - FXDSE: 2007
  • Dyna Super Glide CVO/SE - FXDSE2: 2008
  • Dyna Wide Glide - FXDWG: 1993-2005, 2007-2017
  • Dyna Wide Glide - FXDWG2: 2001
  • Dyna Wide Glide - FXDWG3: 2002
  • Dyna Wide Glide (EFI) - FXDWGI: 2004-2006
  • Dyna Super Glide Sport - FXDX: 1999-2004
  • Dyna Super Glide Sport (EFI - FXDXI: 2004-2005
  • Dyna Super Glide T-Sport - FXDXT: 2001-2003
