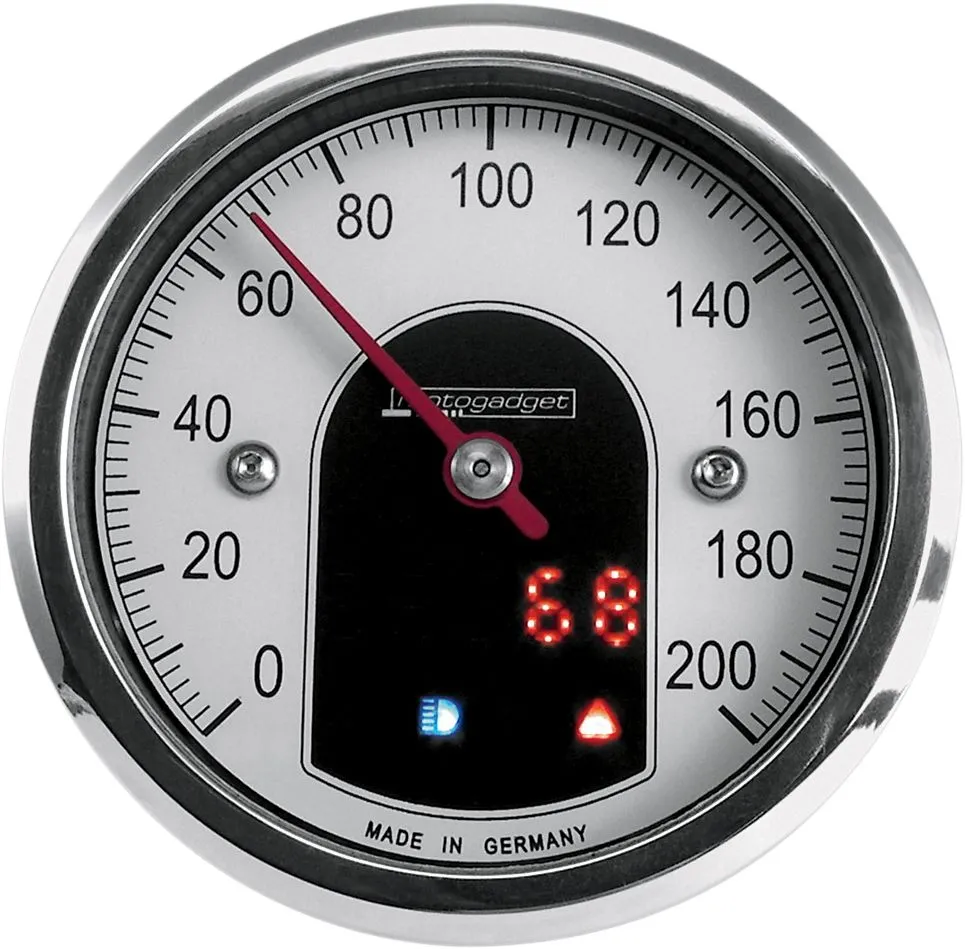

MotoGadget Motoscope Tiny Digital Speedo Standard Polished Bezel (5001012)

  • MotoGadget Motoscope Tiny Digital Speedo Standard Polished Bezel (5001012)
£257.70 inc.VAT
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

EU stock Estimated shipping date between 3 Apr and 8 Apr.

Usually ships in 2-5 business days

All orders are shipped out of our UK premises. Estimated shipping date between 3 Apr and 8 Apr.

×

About Shipping Costs

Shipping Cost

To view the total cost including shipping please advance to the basket and select your shipping country.

×

Overview of the product

The motoscope tiny is a very compact, analogue 49 mm speedometer.
The speed is digitally measured and precisely displayed via stepping motor and indicator.
The installation diameter of 49 mm and the installation depth of only 24 mm provide various installation options.

The sophisticated technology provides for a classic look without compromise. The dial completely does without display sections or LCD and has a convincing classical look. The ideal solution for purists and minimalists.

Casing
The high quality aluminium casing is turned from solid metal and its surface is anodized black. The bezel is also available in 'anodized black' or 'mirror polished'. The casing is 100% water-tight and resistant to vibrations.

Dial and display
The analogue dial in contrasting black and white is indirectly illuminated by white LEDs. The innovative LED display is hidden behind the black part of the dial and only visible through the dial while operating, not when switched off!
The LED luminosity is automatically adjusted to achieve optimal readability in dark, sunlight and dawn conditions.
If the speed exceeds the 200 km/h on the analogue scale, it is automatically displayed in the LED display. The maximum speed is recorded as well
The 4 indicator lights (blue, red and 2 x green) are also integrated into the dial. These lights are only visible when operated, too.

Operation

You can toggle between the different informations on the LED display by operating the supplied menu push-button or e.g. the headlight flasher push-button on the handle bar.
Default value on the display is the time. If needed, a short actuation of the push-button will display the values of total distance, day trip, on-board voltage etc.
 All functions are easy to operate with the push-button, e.g. day trip, reset or the like. Default settings or recorded values are of course stored even with the power supply switched off.

Installation
The motoscope tiny is easy to install with the two M3 threaded holes on the back side.
There are various motogadget brackets available for installation. Refer to "Brackets".

Connection and sensors

The detailed installation and operating instructions (refer to "Downloads") help with the connection of instrument even for users without any previous experience in handling the vehicle's electrical system.
 The supplied speedometer sensor in stainless steel is very small (M5/23 mm) and therefore easy to hide. The sensor can be easily installed on front or rear wheel with the connector cable (1.5 m long). This allows for the easy conversion of an originally mechanical speedometer drive on a motorbike.

The motoscope tiny is compatible with various original speedometer sensors (dry reed contact and proximity sensors) of the motorbike manufacturers. In this case, the terminals have to be connected only and the mechanical sensor installation will be completely obsolete.
An intelligent 'Teach Function' allows for the easy calibration of the speedometer - even on vehicles with transmission sensors, e.g. Harley Davidson (TM).

Parts delivered
Instrument with approx. 75 cm connector cable, mini push-button, 2 removable fuses, 9 cable end connectors, speedometer sensor (M5 x 0,5 fine-pitch thread, stainless steel, IP 68) with 150 cm connector cable, 2 powerful neodymium mini magnets, 2 mounting screws M3 with washer,  2 diodes for pairing of turn signals, detailed installation and operating instructions.

Specifications +

Style: Electronic| Mechanical
Calibration: 0 km/h - 360 km/h| 0 mi - 99.999 mi| KPH| MPH
Product Name: Gauge
Readout Color: Black| Blue| Red| White
Housing Color: Polished
Face Color: Black| White
Bezel Color/Finish: Polished
Units: Each
Model: Motoscope Tiny
Shape: Round
Type: Multi-Function Speedometer
Features: Backlit| Indicator Lights| Top Speed Timer
Housing Material: Aluminum

Part numbers +

  • 930234
  • ARM432039
  • 5001012
  • 2210-0197
  • 22100197
  • 682840
