Heinz Bikes Frequency Sensor In Black (HBTS-CBW)

  • Heinz Bikes Frequency Sensor In Black (HBTS-CBW)
  • MCS image
  • MCS image
£35.24 inc.VAT
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

Estimated shipping date between 16 Oct and 21 Oct.

Usually ships in 3-6 business days

All orders are shipped out of our UK premises. Estimated shipping date between 16 Oct and 21 Oct.

×

About Shipping Costs

Shipping Cost

To view the total cost including shipping please advance to the basket and select your shipping country.

×

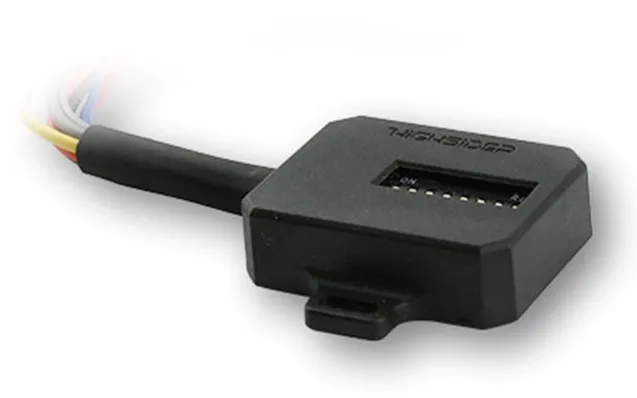

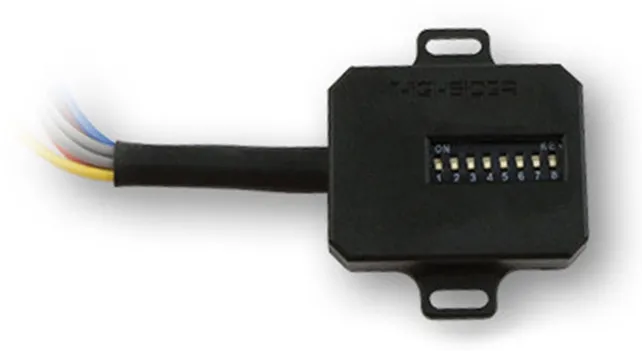

  • CAN-BUS resistor
  • Resistor with DIP switch for vehicles with a CAN-BUS system.
  • The newly developed CAN-BUS resistor provides the required electrical load for your vehicle.
  • When the DIP switches are correctly set, this prevents accessory indicators from generating an error message in the cockpit (rapid flashing of the indicator light in the dash).
  • Furthermore, it is fail-safe. This means that if the accessory indicators fail due to an electronic defect, an error message is immediately displayed in the cockpit.
  • Up to two channels can be controlled, for example, the rear left indicator and the rear right indicator.
  • The following resistance values ​​can be set: 150 Ohm, 170 Ohm, 240 Ohm, 300 Ohm, 400 Ohm, 600 Ohm, 1200 Ohm

Dimensions:

Height = 11mm, Width = 31mm / 46mm (with tabs), Length = 40mm

Cable length = 200mm with pins

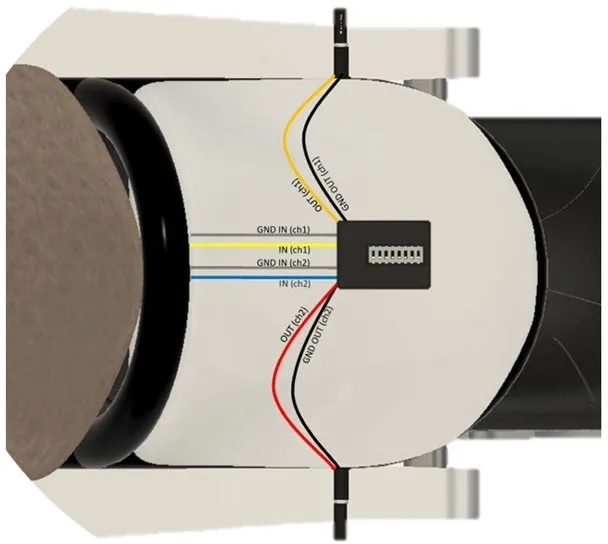

Connections:

  • Yellow = Input Channel 1 (+)
  • Orange = Output Channel 1 (+)
  • Blue = Input Channel 2 (+)
  • Red = Output Channel 2 (+)
  • Grey = Input Ground (-)
  • Black = Output Ground (-)

Part numbers +

  • 706794
  • HBTS-CBW
