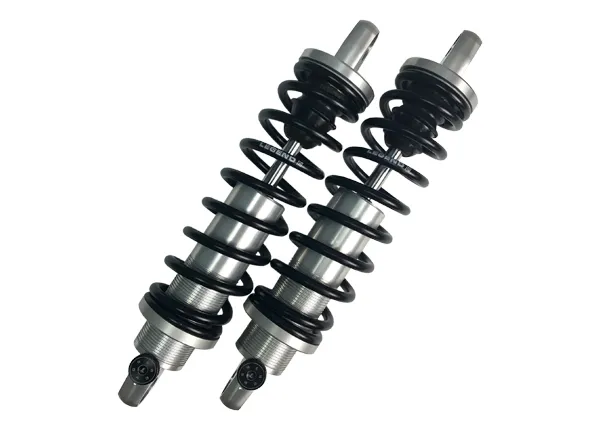

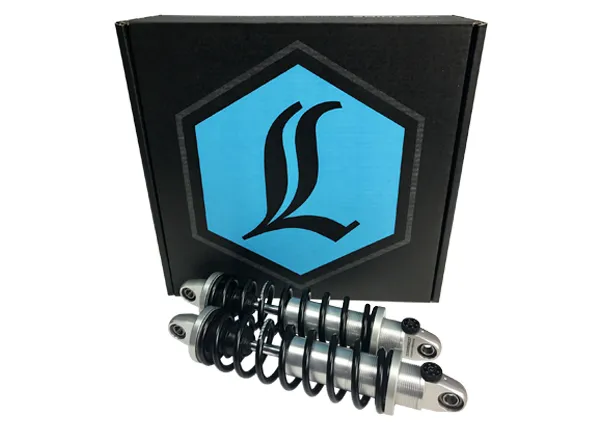

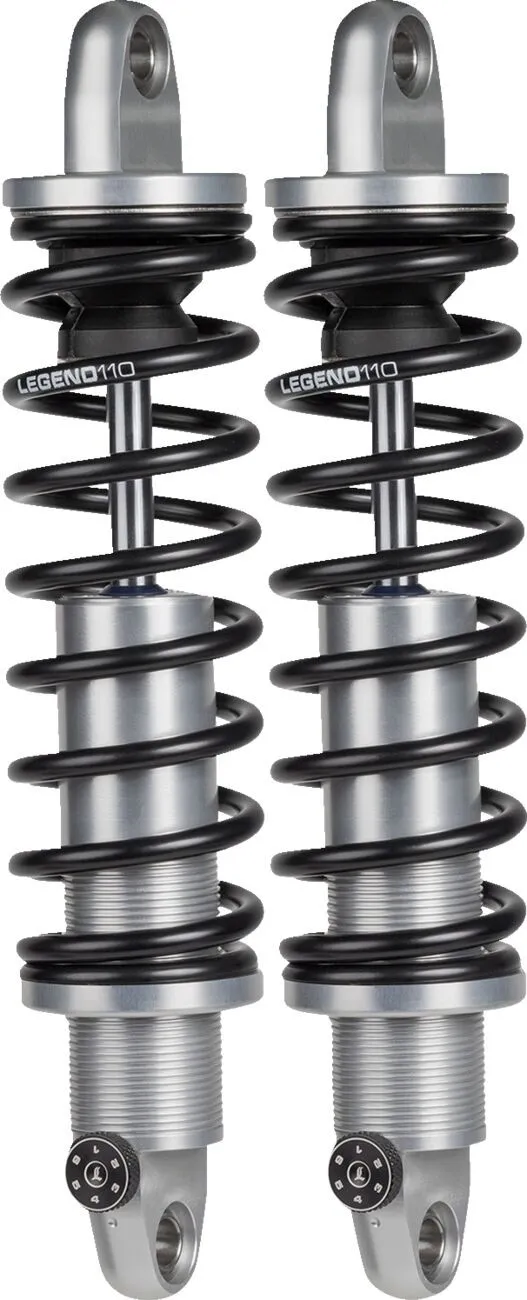

Legend 12 Inch Revo-A Suspension In Clear Finish For Harley Davidson 2004-2020 Sportster Motorcycles (1310-1610)

  • Legend 12 Inch Revo-A Suspension In Clear Finish For Harley Davidson 2004-2020 Sportster Motorcycles (1310-1610)
£1,080.30 inc.VAT
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

US stock Estimated shipping date between 22 Apr and 26 Apr.

Usually ships in 3-4 weeks

All orders are shipped out of our UK premises. Estimated shipping date between 22 Apr and 26 Apr.

×

Instructions
About Shipping Costs

Shipping Cost

To view the total cost including shipping please advance to the basket and select your shipping country.

×

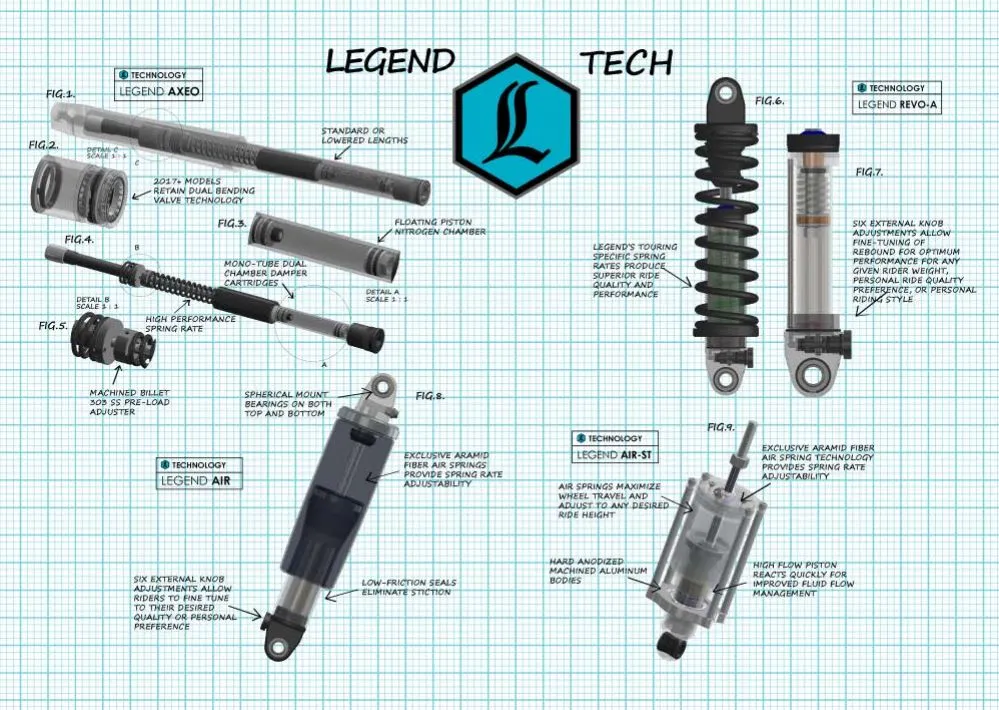

PRODUCT DESCRIPTION:

  • Available in Black, Clear Anodized or Gold.
  • Legend's touring specific spring rates produce superior ride quality and performance
  • REVO coils provide improved plush ride quality, control, and resistance to bottoming-out
  • REVO's extended coil length has larger "sweet spot" without increasing overall shock length
  • REVO's unique spring rate offers the ability to soften pre-load, reducing ride height and maintaining a smooth ride
  • Allows minimal pre-load adjustments when changing between riders' weights or loads
  • Adjusts by hand, no tools needed
  • Available in 12", 13" and 14", standard or heavy-duty applications
  • Easy installation and alignment, provided by spherical bearings on both top and bottom
  • All the benefits of the new REVO shocks above plus six external knob adjustments allow fine-tuning of rebound
  • Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
  • Light to heavy riders can fine-tune ride preference
  • Aggressive to casual riding styles can tune to desired quality or personal preference
  • NOTE: Heavy Duty applications are recommended for 500lb. + rider and passenger total weight.
  • NOTE: Heavy Duty not available in clear anodized or gold.
  • P65 WARNING: Cancer and Reproductive Harm
  • Backed by Lifetime Warranty
  • Made by hand in Sturgis, South Dakota, USA

Specifications +

Units: Pair
Adjustment Type: Adjustable Rebound Damping
Base Finish: Anodized
Reservoir Location: Internal
Base Color: Clear
Duty: Standard
Model: Revo-A
Extended Length: 305,00 mm (12,00")
Damping Method: Deflective Disc
Color/Finish: Anodized| Clear
Product Name: Shock Absorber
Type: Coilover Twin-Tube
Material: Hard Anodized Machined Aluminum
Mounting Position: Rear

Part numbers +

  • 1310-1610
  • 13101610

Fitment +

    HARLEY DAVIDSON
  • Sportster Custom - XL 1200 C: 2004-2020
  • Roadster - XL 1200 CX: 2016-2020
  • Sportster Low - XL 1200 L: 2007-2011
  • Nightster - XL 1200 N: 2007-2012
  • Sportster 1200 Iron - XL 1200 NS: 2019-2021
  • Sportster Roadster - XL 1200 R: 2004-2008
  • Sportster Seventy-Two - XL 1200 V: 2012-2016
  • Sportster Forty-Eight - XL 1200 X: 2010-2022
  • Sportster Forty-Eight Special - XL 1200 XS: 2019-2020
  • Sportster - XL 883: 2005-2009
  • Sportster Custom - XL 883 C: 2004-2010
  • Sportster SuperLow - XL 883 L: 2005-2010
  • Sportster Iron - XL 883 N: 2009-2022
  • Sportster Roadster - XL 883 R: 2007-2015
